13kVA Perkins 3 phase generator set

BURNSIDE, QLD - Delivers Nationally

Diesel Generator Set:

• 13kVA 3 phase 240/415vac, 50Hz, Prime Power Rating Generator Set
• Perkins, 1500rpm industrial diesel engine.
• Set mounted radiator, and pusher engine driven fan.
• Dry type replaceable element engine air intake filter.
• Leroy Somer alternator, single bearing, flange mounted to the engine and driven by flexible steel discs.
• Class “H” insulation.
• RFI Suppression.
• Automatic voltage regulator.
• Supply 12Vdc, lead acid starting battery, and leads.
• Supply 12Vdc Starting Battery Charger, mounted inside control cubicle.
• Engine fitted with 12Vdc charging alternator.
• ABB Main output circuit breaker, mounted in control cubicle on generator.
• The generator set would be controlled via a programmable set mounted Deep Sea Electronics, Automatic, remote stop / start generator Controller, incorporating:
• Generator set fitted a bunded skid base 12 hour run time fuel tank 75% laod.
• Diesel fuel tank to incorporate:
- Fuel level gauge.
- Fill point.
- Vent Pipe.
• Carry out pre delivery testing. (inspection welcome at this time)
• Supply 1 copy of operation, and maintenance manuals.

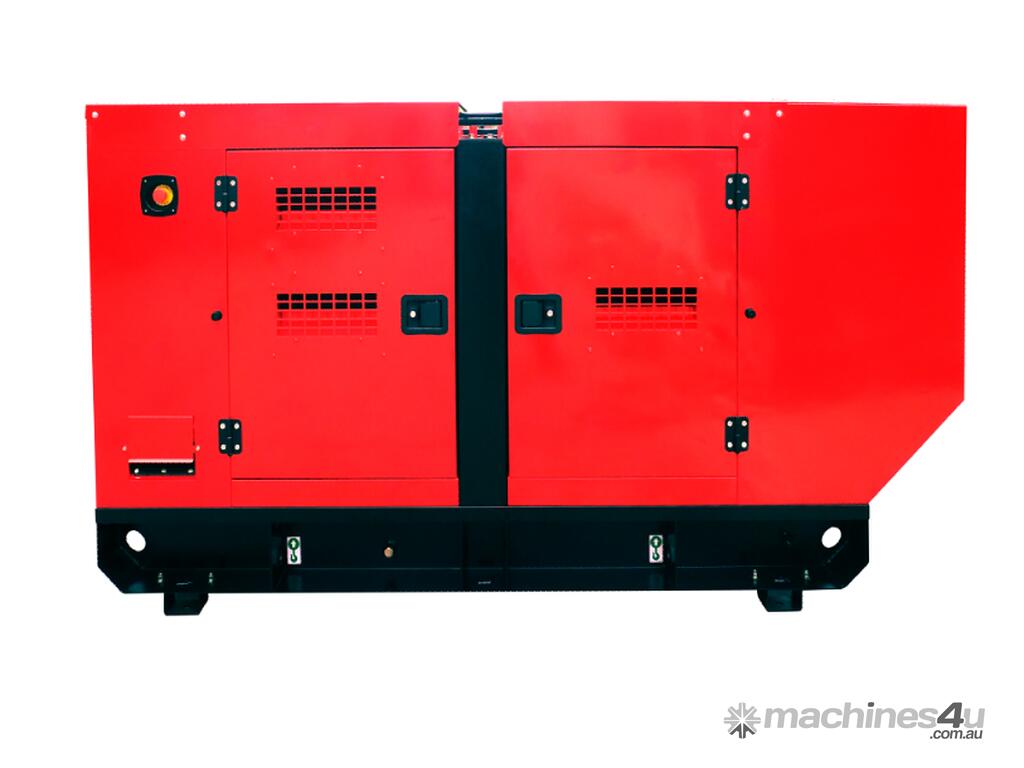

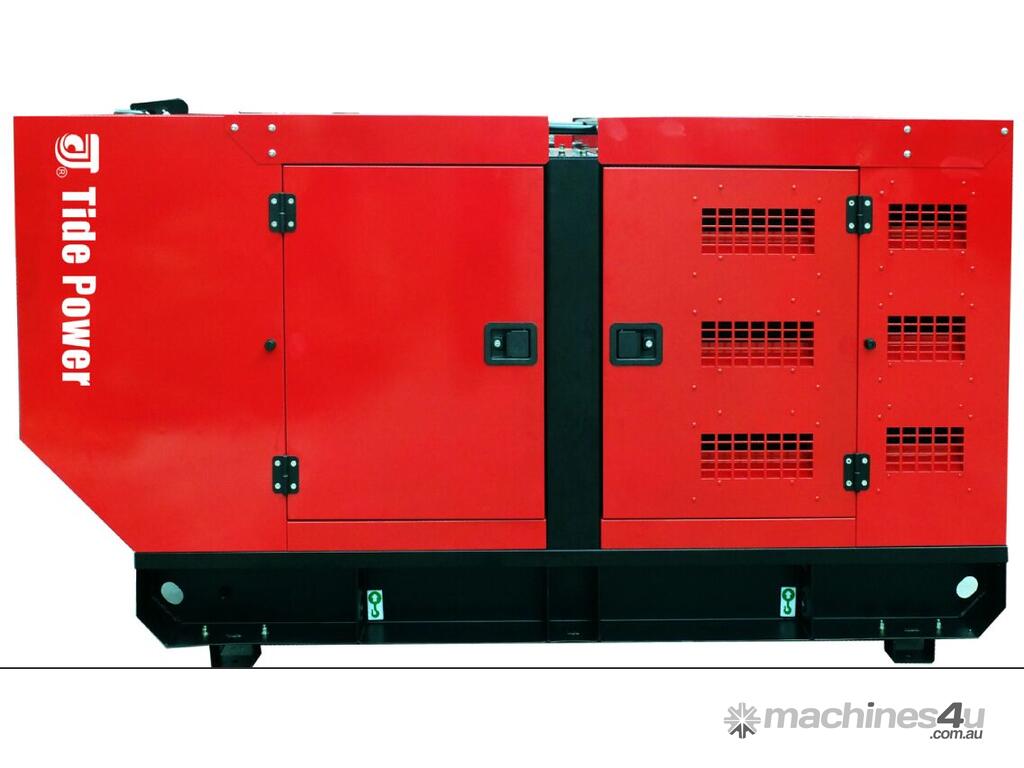

Acoustic canopy:
Tide Power incorporate the following standard features; please see the attached canopy specification sheet for further information:
• Acoustic sound attenuated canopy to nominally 68Bb 7m
• Lube oil and coolant drains piped to the exterior of the canopy.
• Service access doors on each side of canopy.

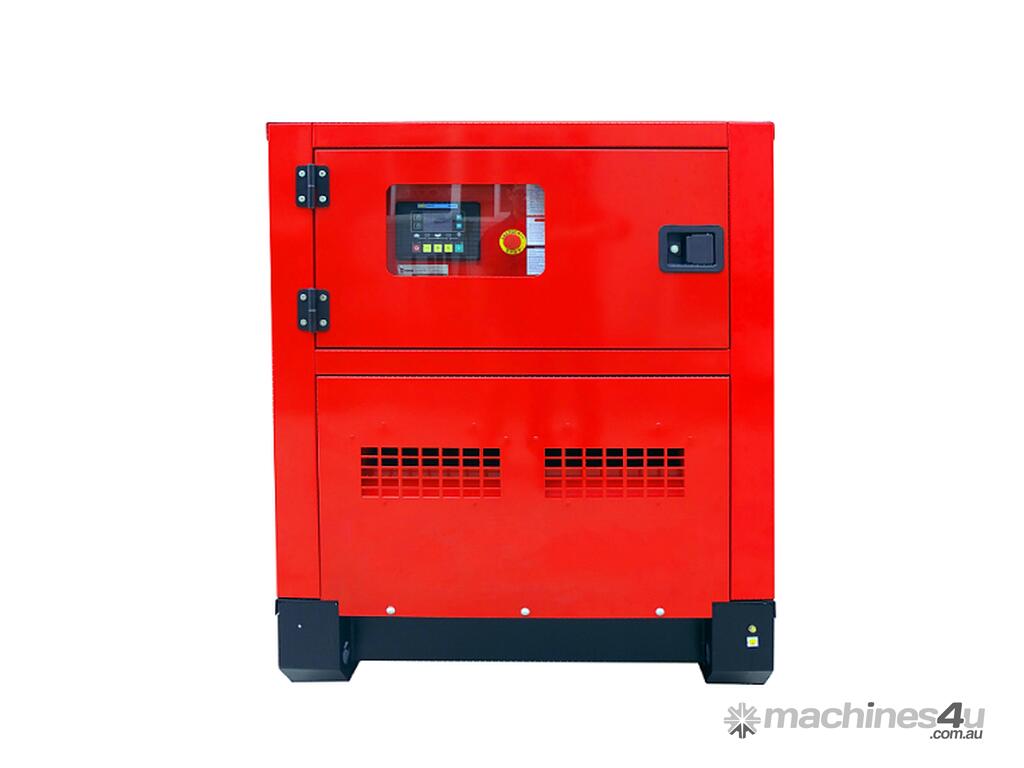

• Control panel viewing window.
• Heavy lift and fork lift provisions.
• Exhaust outlet on top of the canopy.
• Cable entry provisions.
• The canopy constructed from 2mm sheet metal and painted in polyester powder coating.
• High temperature fire retardant sound insulation.
• “Slap up” hinge and door handles.
• Exterior mounted emergency stop button.
• Lockable door handles for security.
