40kVA generator set Powered by a Cummins ® engine

BURNSIDE, QLD - Delivers Nationally

In Stock
NEW 40kVA Powered by a Cummins ® engine/ Incorporating a Stamford® Alternator Diesel generator set:

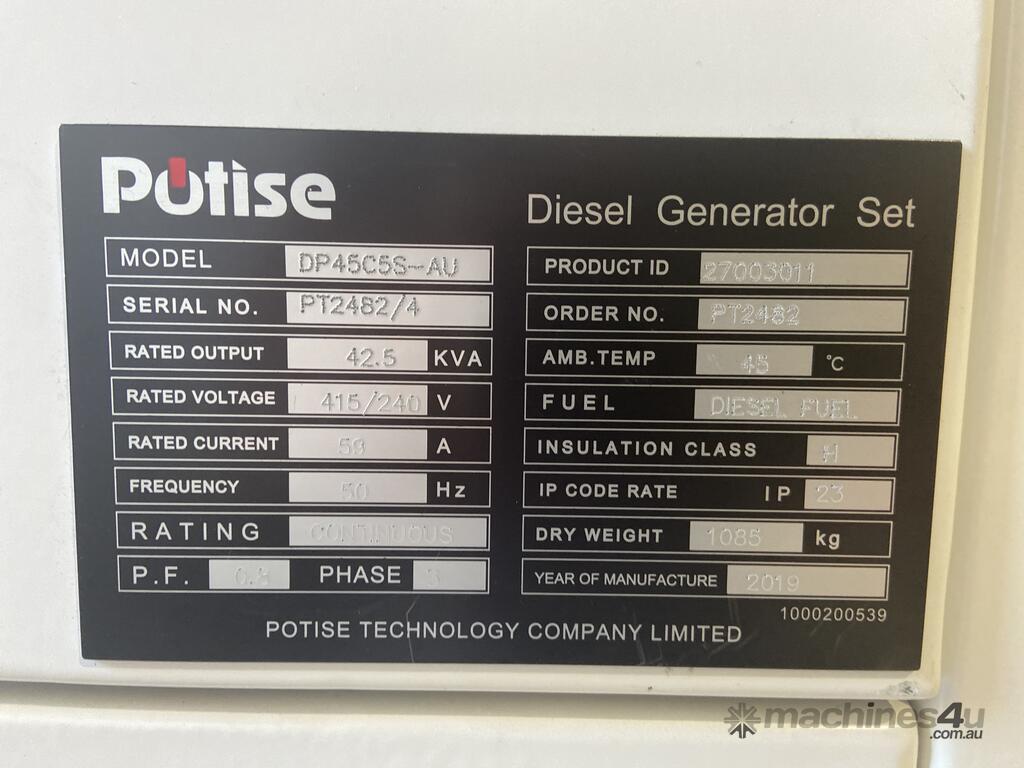

•40kVA 240/415v 50Hz 55.6Amp’s per phase, Prime Power Rating Generator Set (44kVA Stand-by rating).
•Powered by a Cummins ® 4BT3.9-G1 , 4 cylinder, 1500rpm industrial diesel engine.
•Set mounted radiator, and pusher engine driven fan.
•Dry type replaceable element engine air intake filter.
•Leroy Somer alternator, single bearing, flange mounted to the engine and driven by flexible steel discs.
•Class “H” insulation.
•RFI Suppression.
•Automatic voltage regulator.

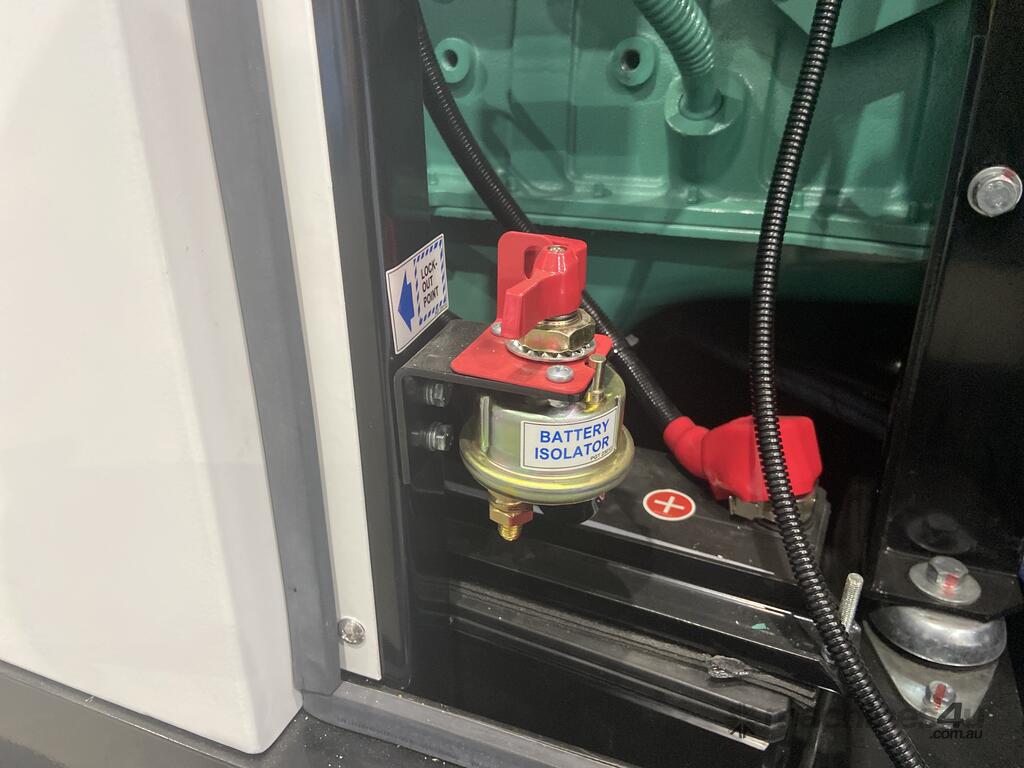

•Supply 24Vdc, lead acid starting battery, and leads.
•Supply 24Vdc Starting Battery Charger, mounted inside control cubicle.
•Engine fitted with 24Vdc charging alternator.
• Main output circuit breaker, mounted in control cubicle on generator.

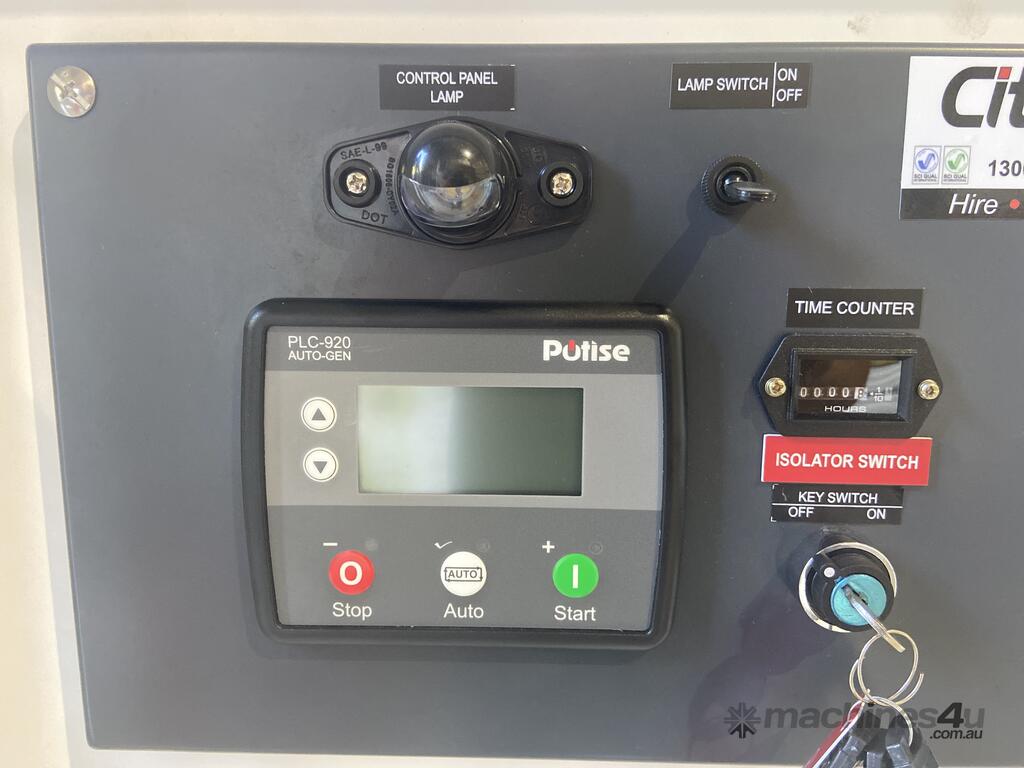

•The generator set would be controlled via a programmable, set mounted Harsen 2.0 controller.
•Generator set fitted with base fuel tank, suitable for 10hrs running at 75% of prime power load.
•Carry out pre dery testing at City Generators works. (inspection welcome at this time)
•Supply 1 copy of operation, and maintenance manuals.

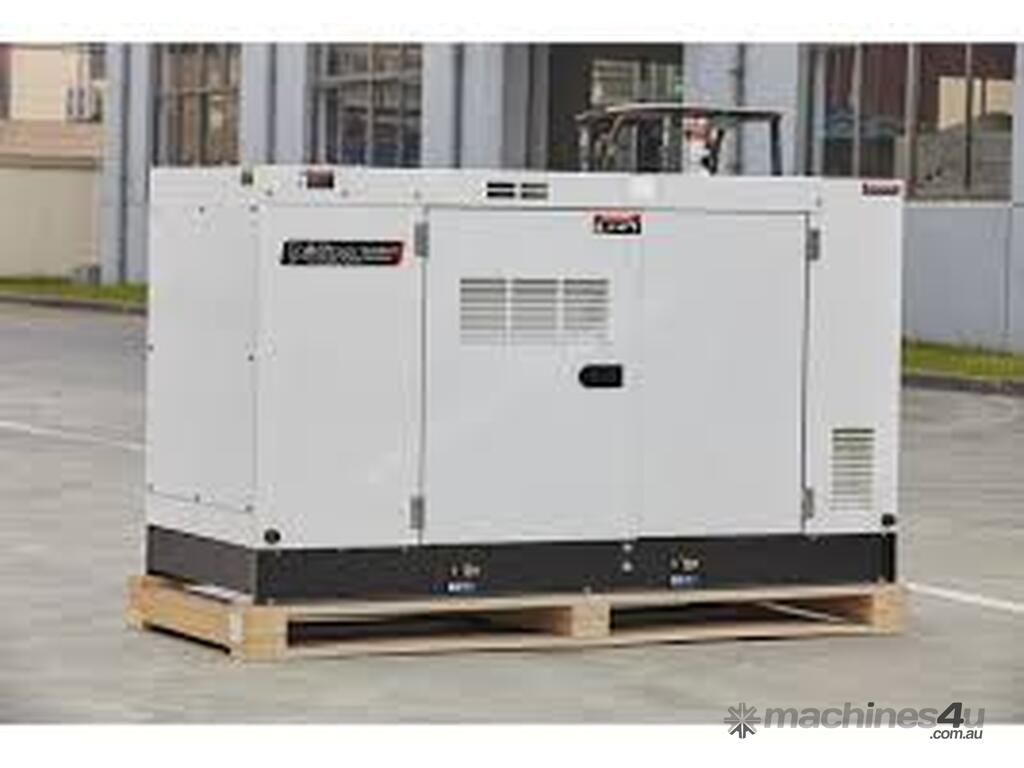

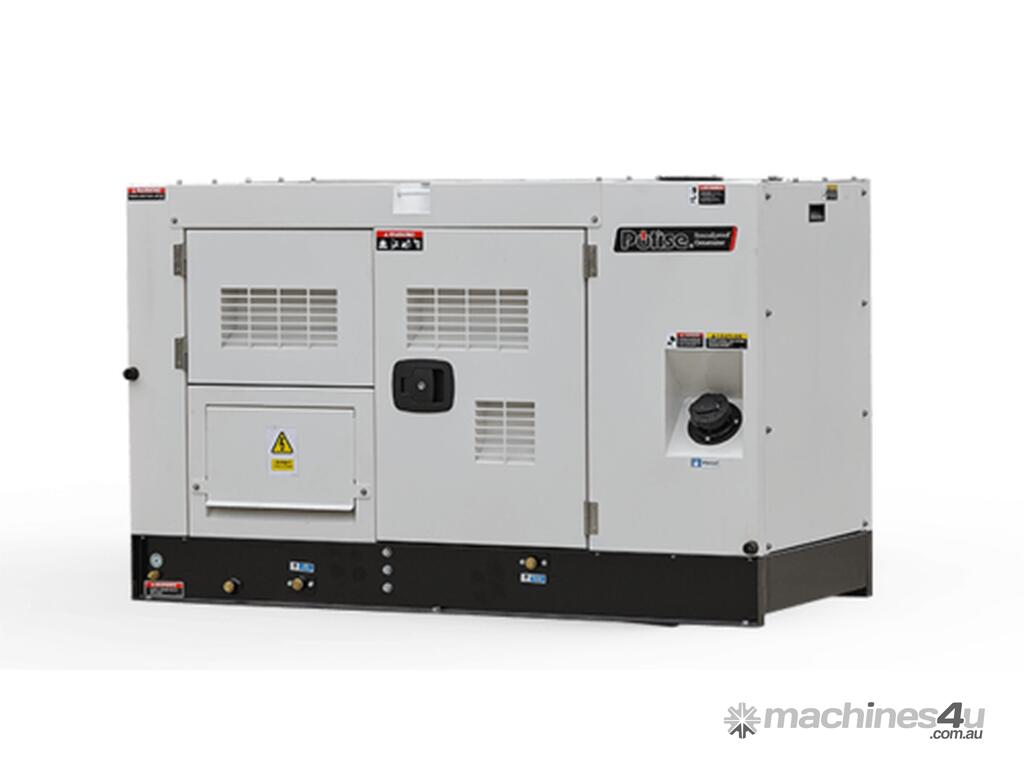

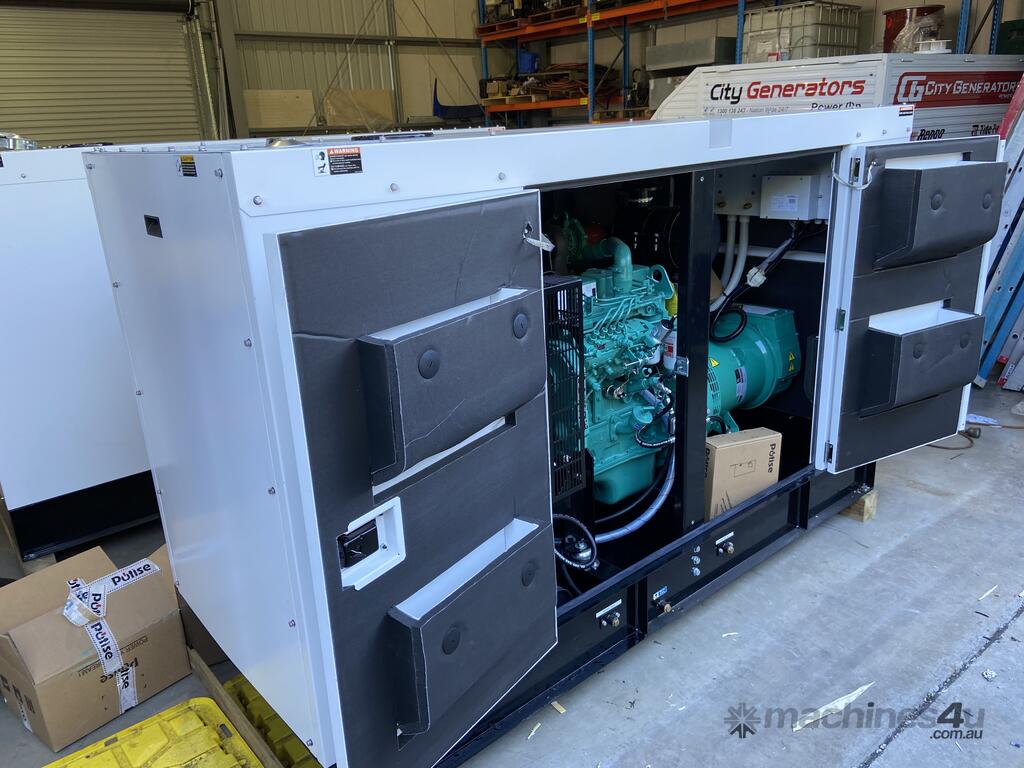

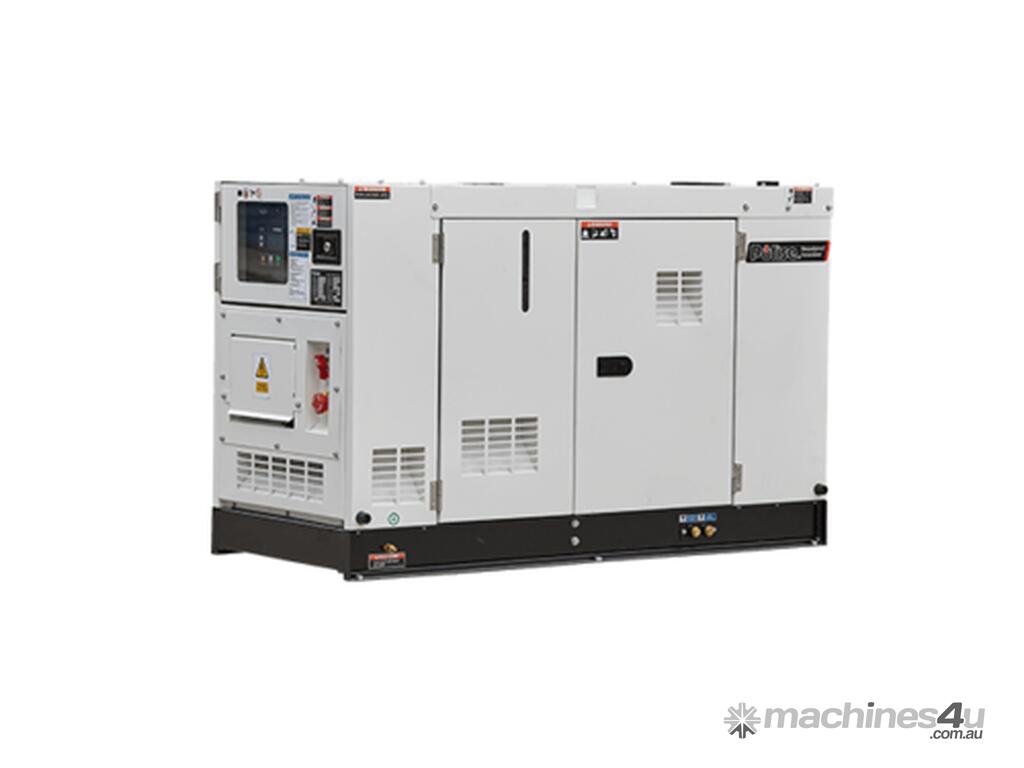

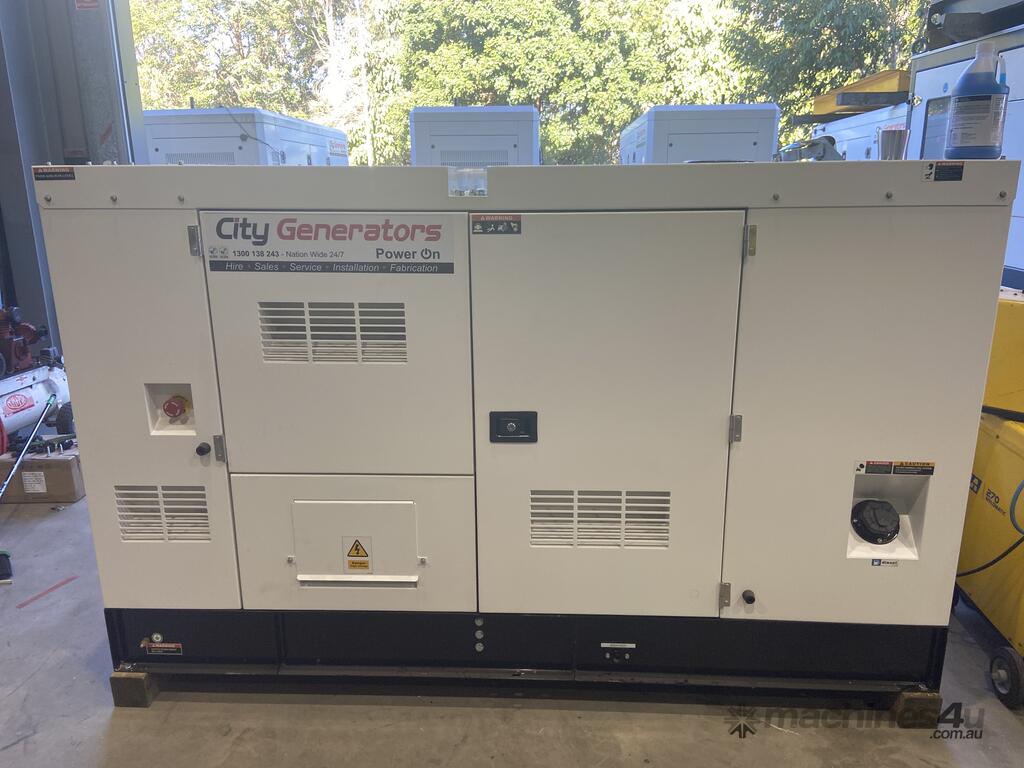

Acoustic canopy:
Tide Power canopies incorporate the following standard features; please see the attached canopy specification sheet for further information:
•Acoustic sound attenuated canopy to nominally 72Bb 7m
•Lube oil and coolant drains piped to the exterior of the canopy.

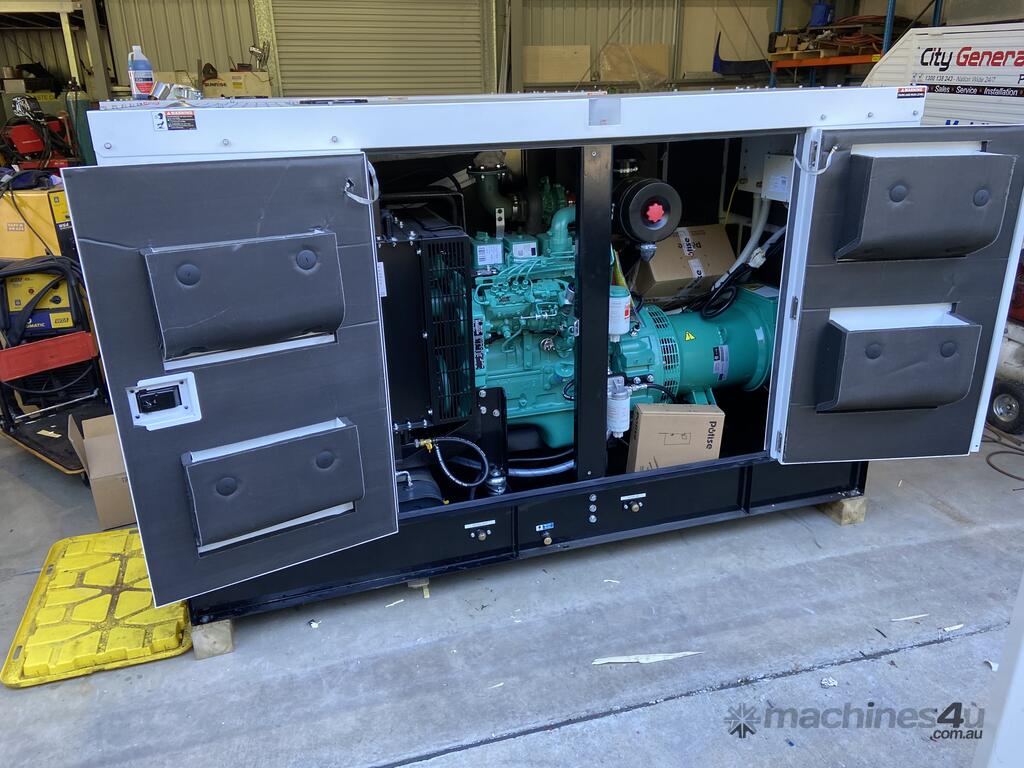

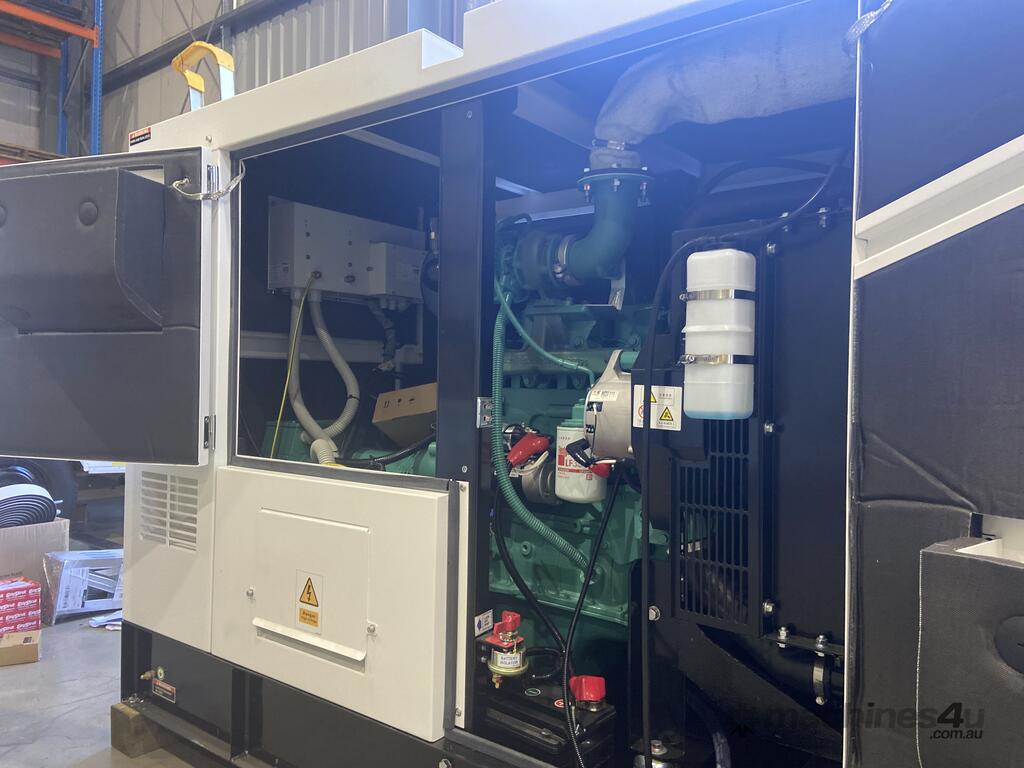

•Service access doors on each side of canopy.

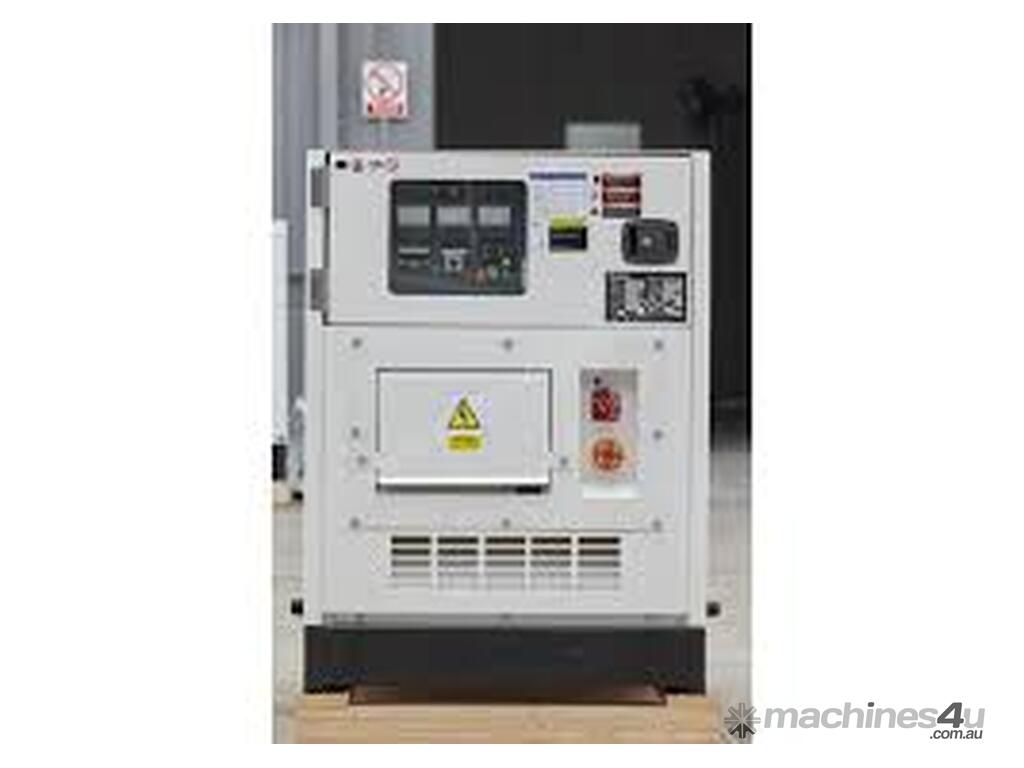

•Control panel viewing window.
•Heavy lift and fork lift provisions.
•Engine and radiator exhaust outlet on top of the canopy (Vertical discharge).
•Cable entry provisions.
•The canopy constructed from 2mm sheet metal and painted red in polyester powder coating
•High temperature fire retardant sound insulation.
•“Slap up” hinge door handles.
•Exterior mounted emergency stop button.
•Lockable door handles for security.

This can be delivered Australia wide. This Generator set is manufactured by Potise specification and is Powered by a Cummins ® engine
