110KVA Powered by a Cummins ® engine

BURNSIDE, QLD - Delivers Nationally

TIDE POWER Diesel Generator Set:



· 100kVA 240/415v 50Hz 139Amp’s per phase, Prime Power Rating Generator Set (110kVA Stand-by rating).

· Powered by a Cummins® , 6 cylinder, 1500rpm industrial diesel engine.

· Set mounted radiator, and pusher engine driven fan.

- Centre lift, skid base oil pump for servicing.

· Dry type replaceable element engine air intake filter.

· Leroy Somer alternator, single bearing, flange mounted to the engine and driven by flexible steel discs.

· Class “H” insulation.

· Automatic voltage regulator.

· Supply 24Vdc, lead acid starting battery, and leads.

· Supply 24Vdc Starting Battery Charger, mounted inside control cubicle.

· Engine fitted with 24Vdc charging alternator.

· Main output circuit breaker, mounted in control cubicle on generator.

· The generator set controlled via a programmable set mounted , Automatic, remote stop / start generator Controller

· Generator set fitted with skid base fuel tank, suitable for 10hrs running at 75% of prime power load.

· Carry out pre dery testing.

· Supply 1 copy of operation, and maintenance manuals.

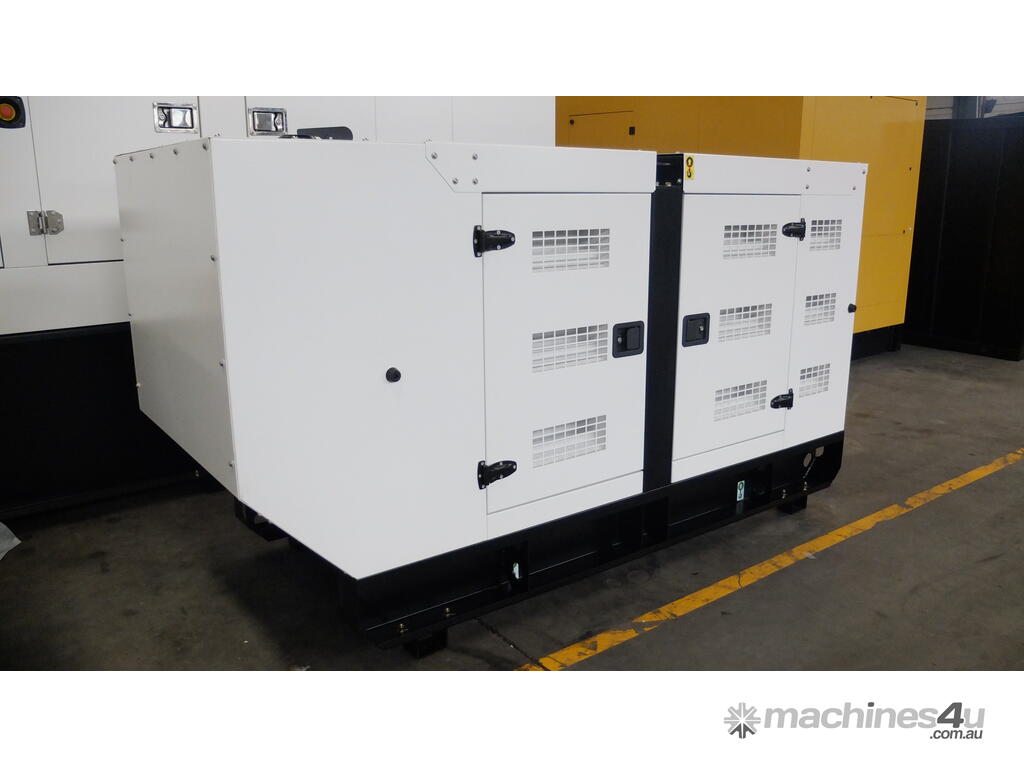

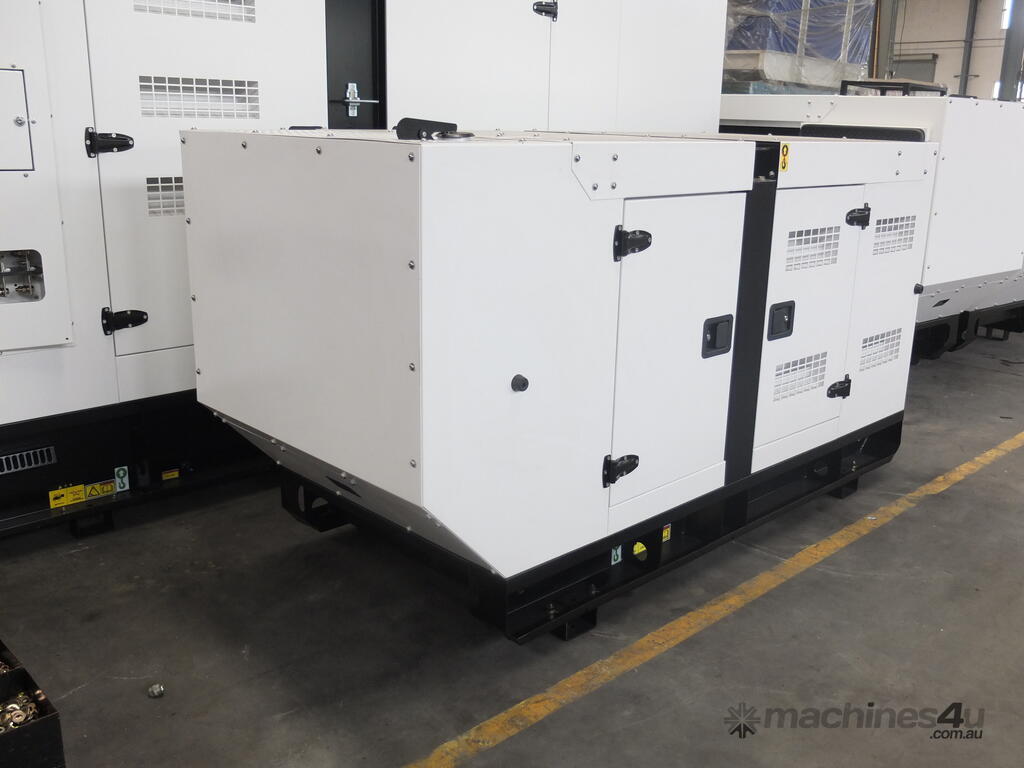

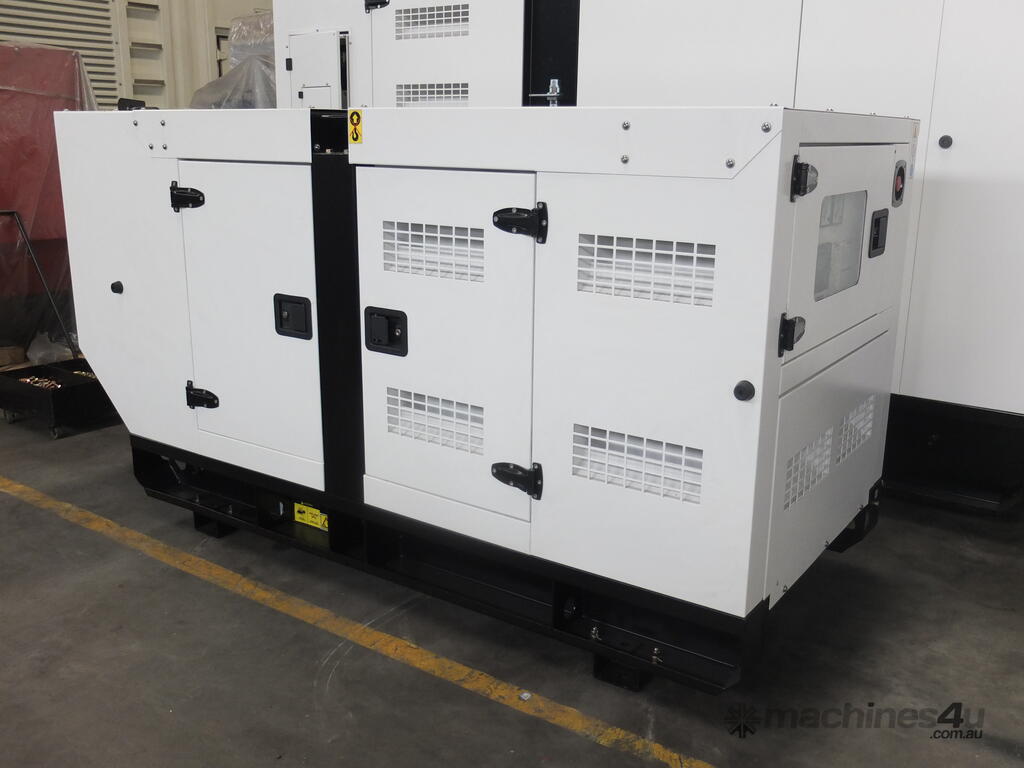

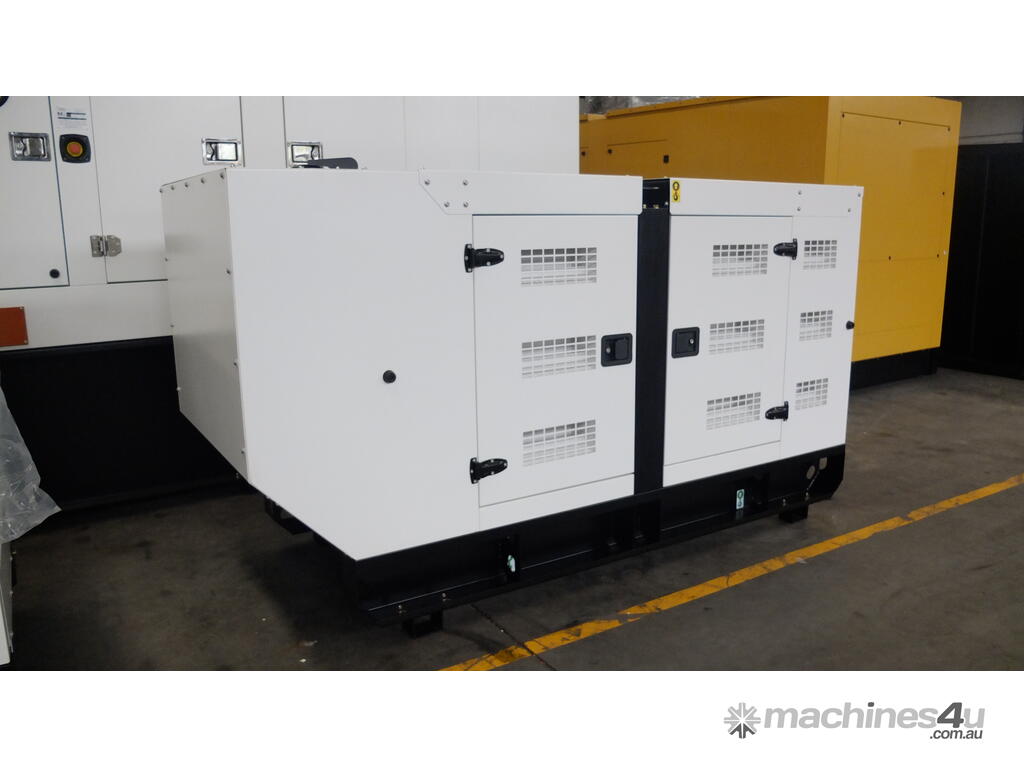

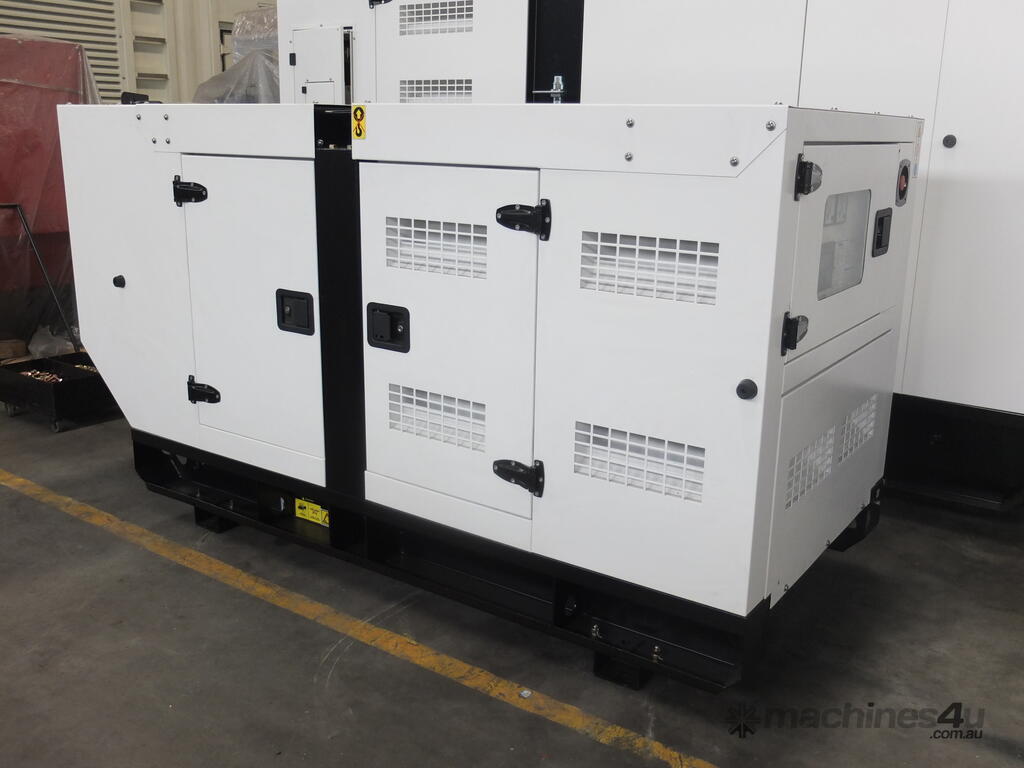

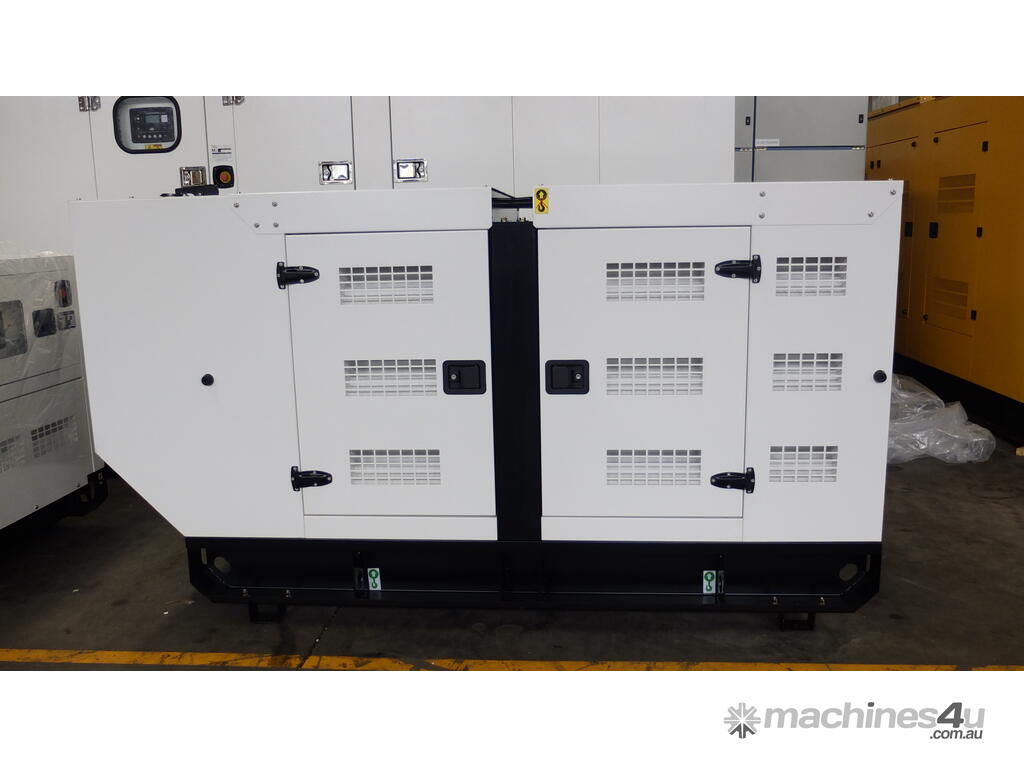

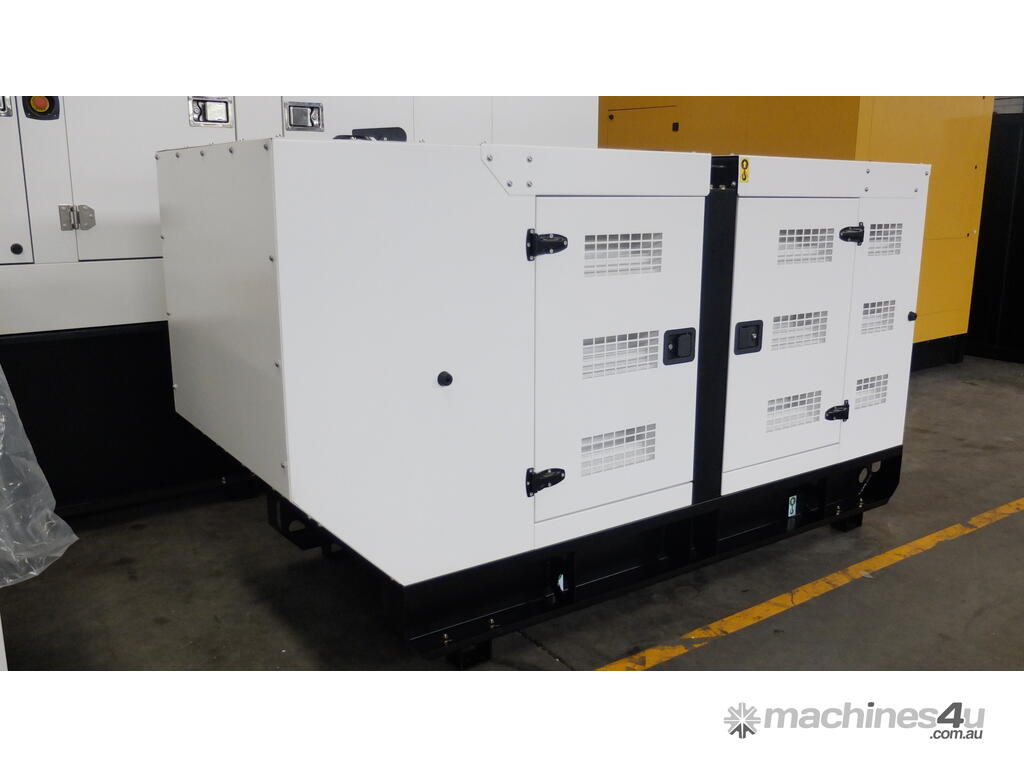

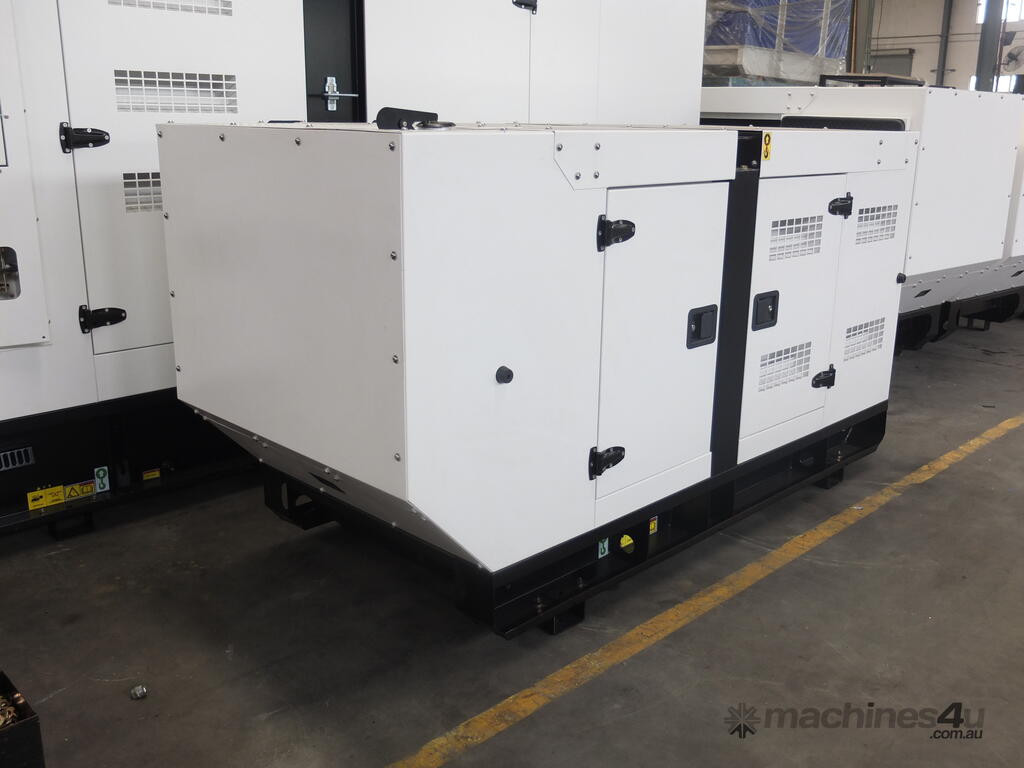

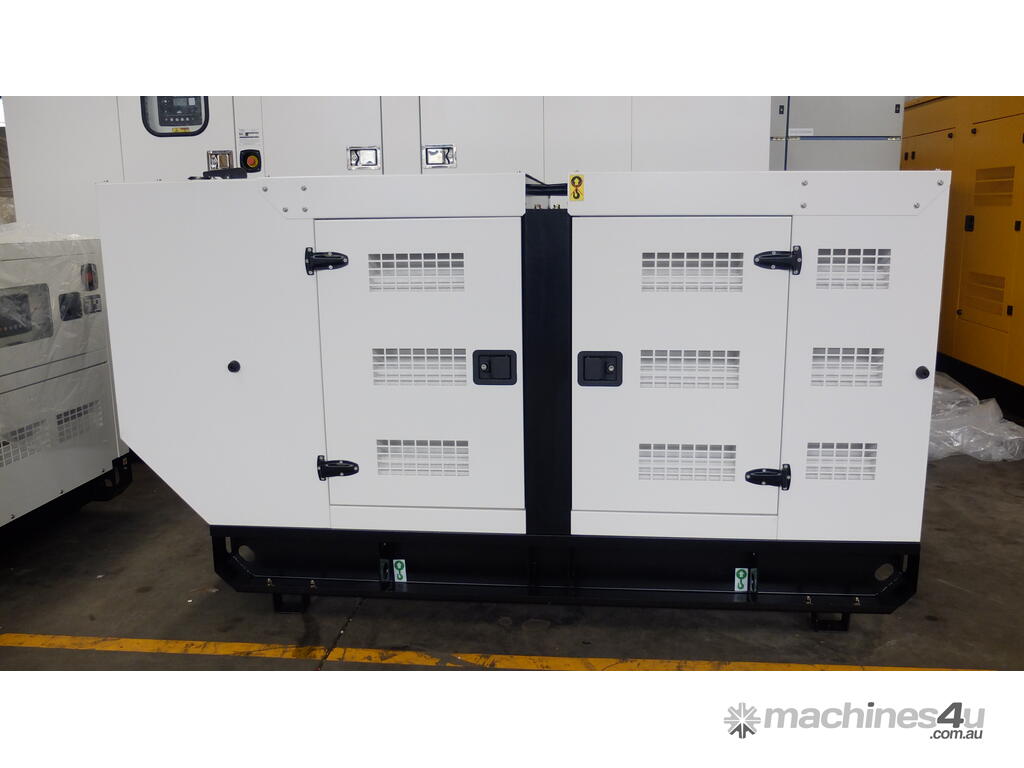

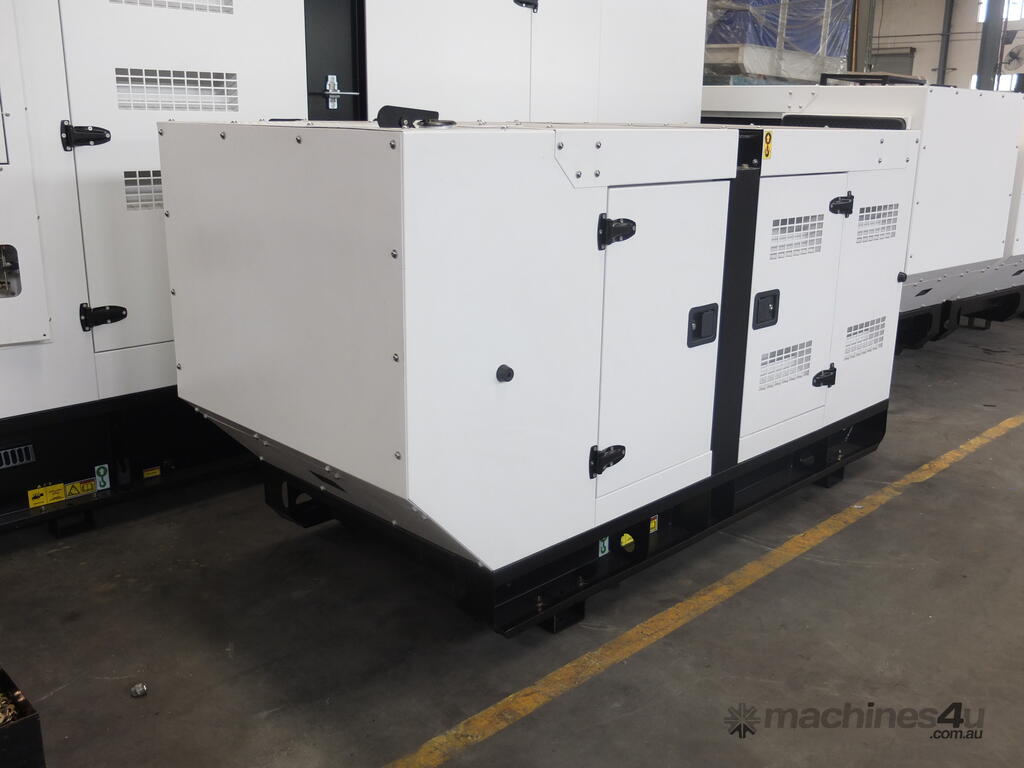

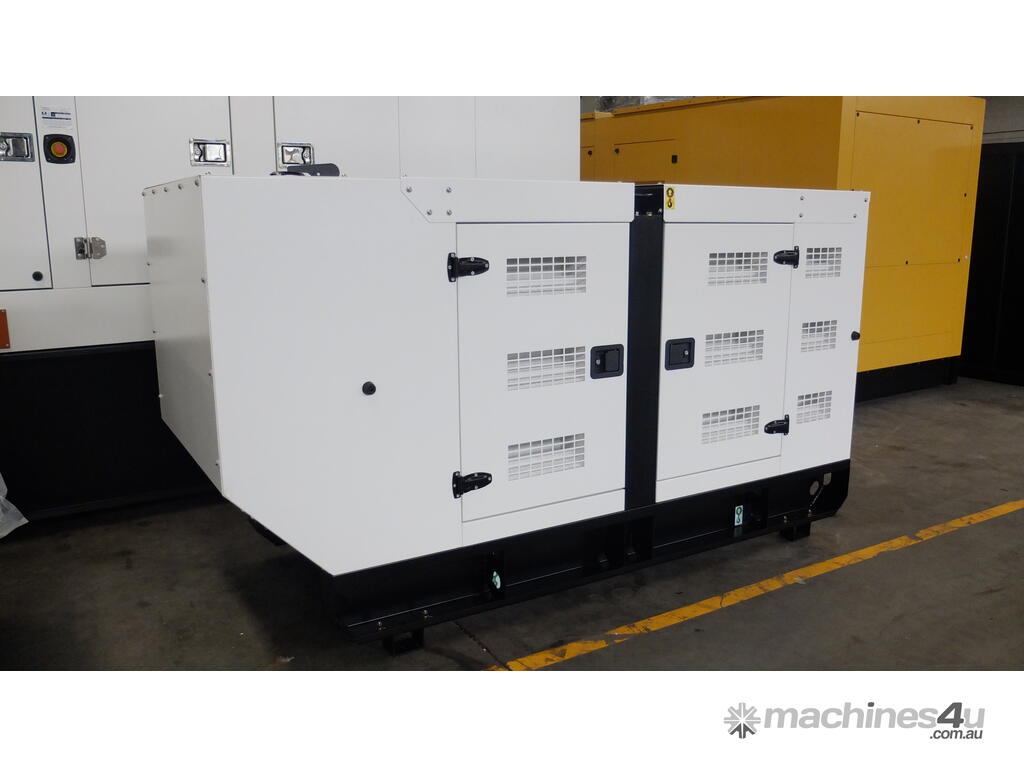

Acoustic canopy:

Tide Power canopies incorporate the following standard features;

· Acoustic sound attenuated canopy to nominally 74Bb 7m (this is industry standard, super silent is available at additional cost)

· Lube oil and coolant drains piped to the exterior of the canopy.

· Service access doors on each side of canopy.

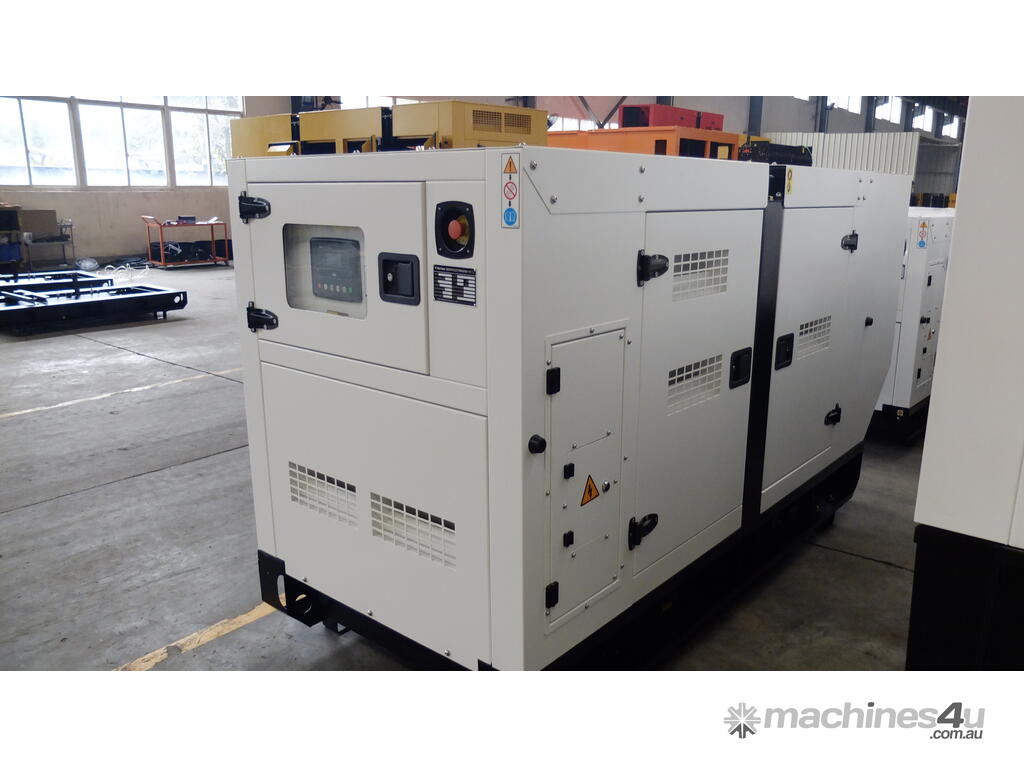

· Control panel viewing window.

· Heavy lift and fork lift provisions.

· Exhaust outlet on top of the canopy.

· Cable entry provisions.

· The canopy constructed from 2mm sheet metal and painted in polyester powder coating.

· High temperature fire retardant sound insulation.

· “Slap up” hinge and door handles.

· Exterior mounted emergency stop button.

· Lockable door handles for security.

2 years or 2000 hours warranty.


City Generators are the exclusive QLD and NSW Distributor for Tide Power generators. This Generator set is manufactured by Tide Power Systems to City Generators specification and is Powered by a Cummins ® engine
