15kVA 3 phase generator set Powered by Kubota

BURNSIDE, QLD - Delivers Nationally

Diesel Generator Set:

• 15kVA 3 phase 240/415vac, 50Hz, Prime Power Rating Generator Set

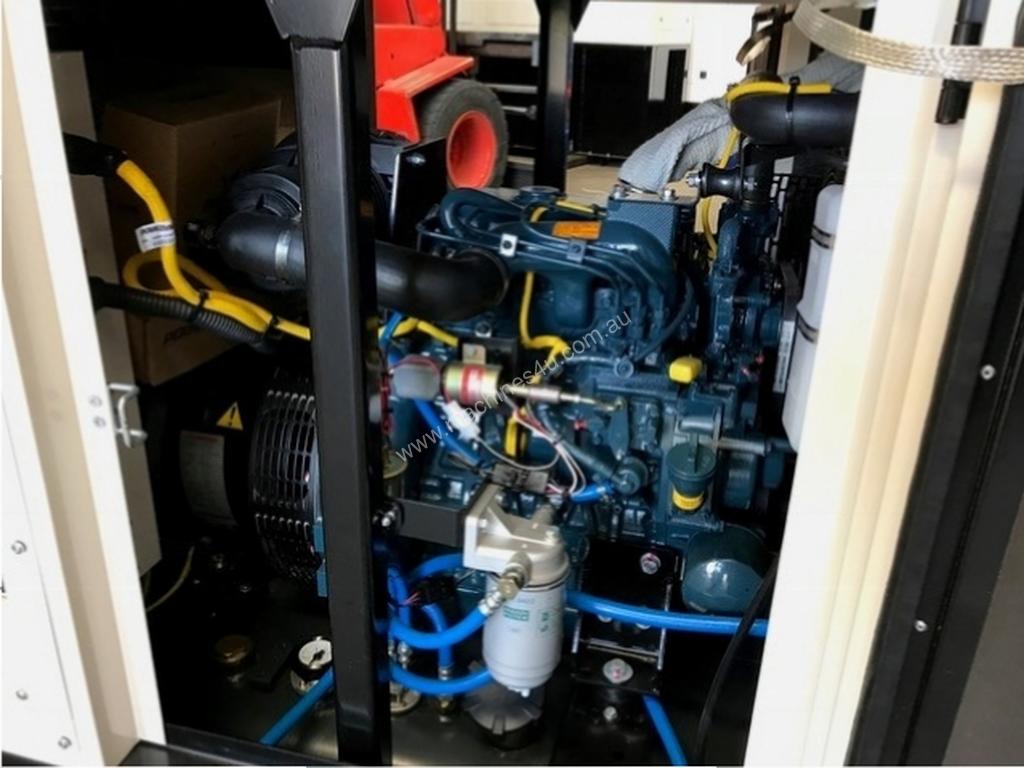

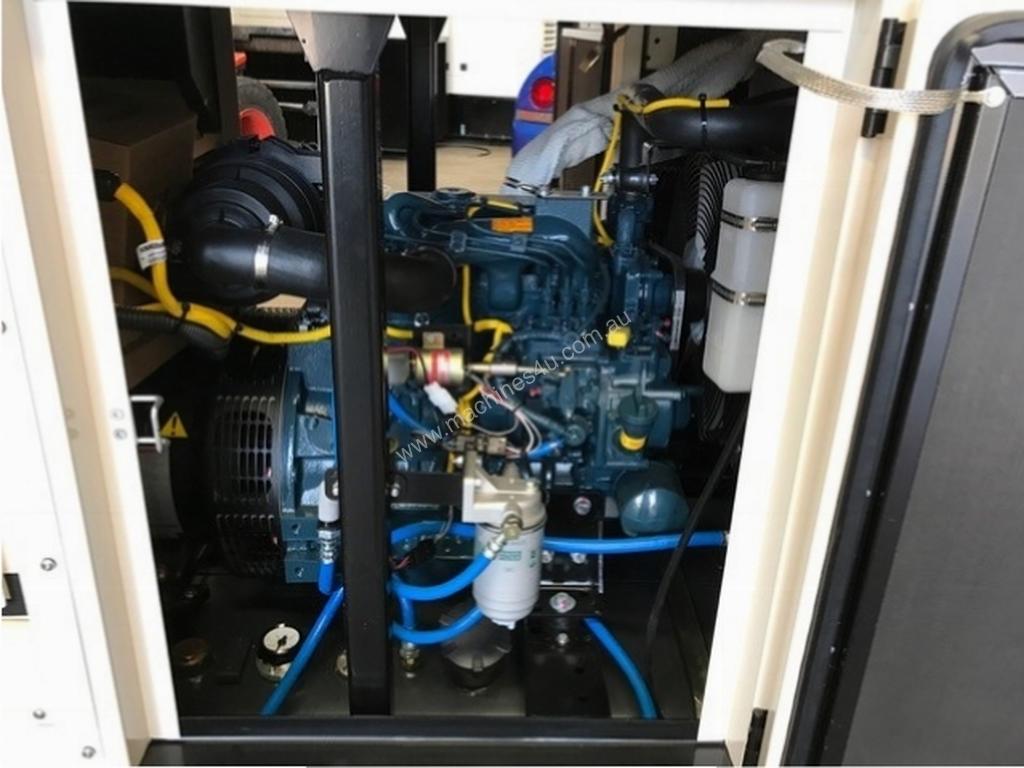

• Kubota industrial diesel engine.

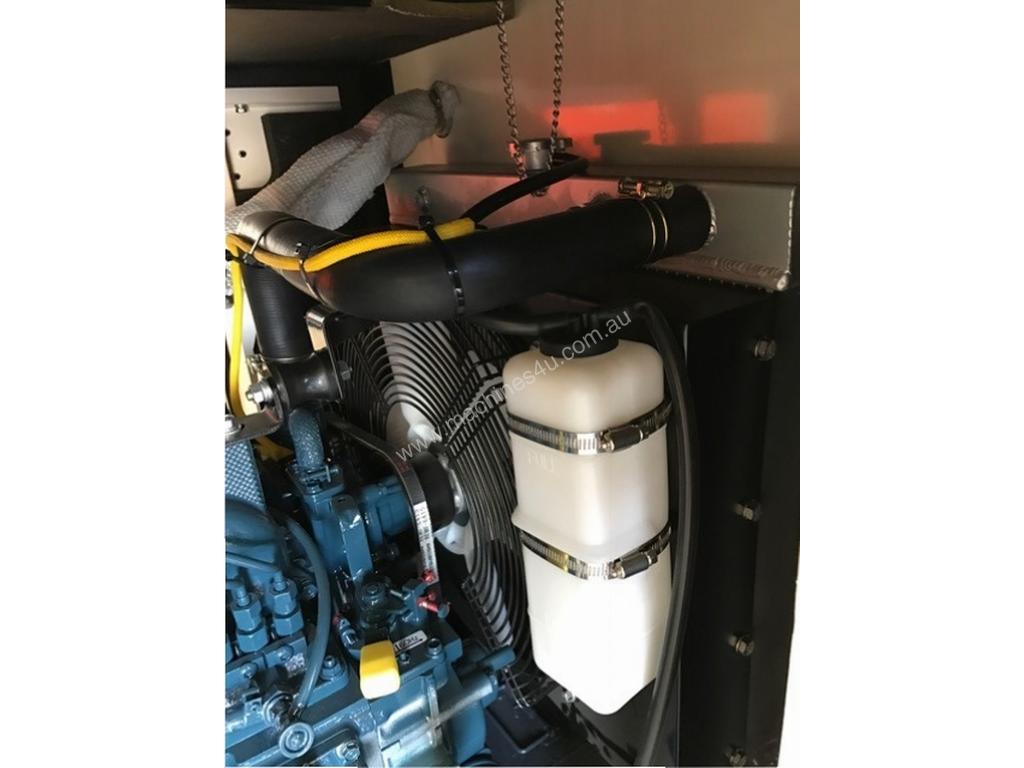

• Set mounted radiator, and pusher engine driven fan.
• Dry type replaceable element engine air intake filter.

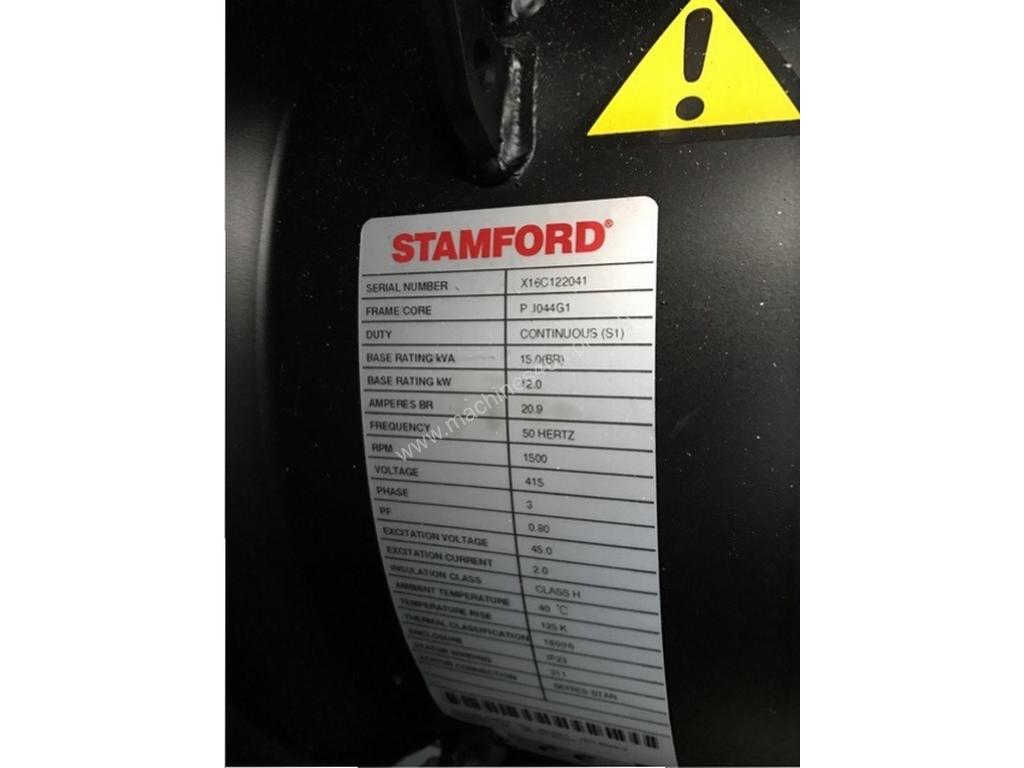

• Incorporating a Stamford® Alternator, single bearing, flange mounted to the engine and driven by flexible steel discs.
• Class “H” insulation.
• RFI Suppression.
• Automatic voltage regulator.
• Supply 12Vdc, lead acid starting battery, and leads.
• Supply 12Vdc Starting Battery Charger, mounted inside control cubicle.
• Engine fitted with 12Vdc charging alternator.
• Schneider Main output circuit breaker, mounted in control cubicle on generator.

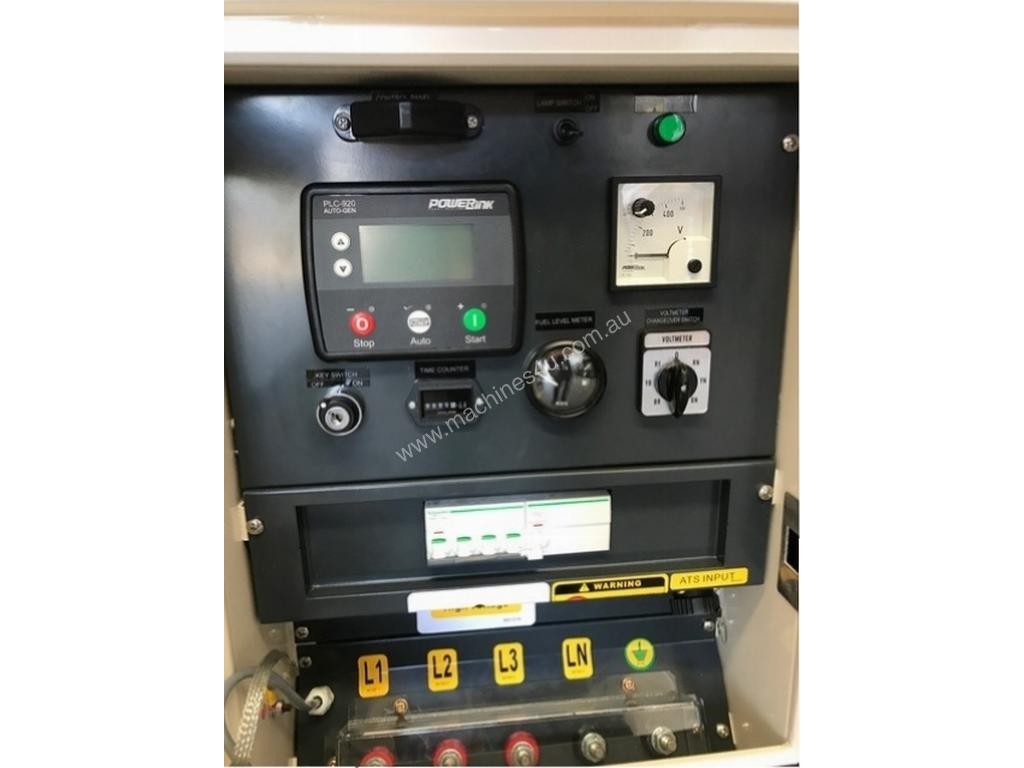

• The generator set would be controlled via a programmable set mounted Deep Sea Electronics , Automatic, remote stop / start generator Controller:
• Generator set fitted a bunded skid base fuel tank.

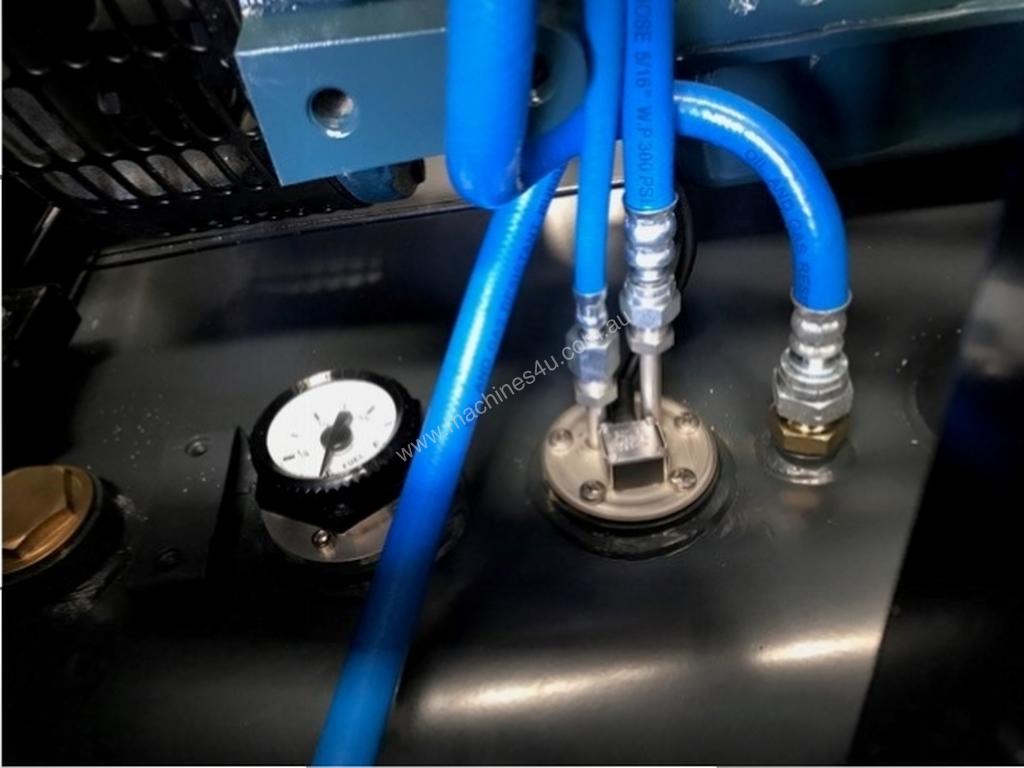

• Diesel fuel tank to incorporate:
- Fuel level gauge.
- Fill point.
- Vent Pipe.
• Carry out pre delivery testing. (inspection welcome at this time)
• Supply 1 copy of operation, and maintenance manuals.

Generator set fitted with outlets

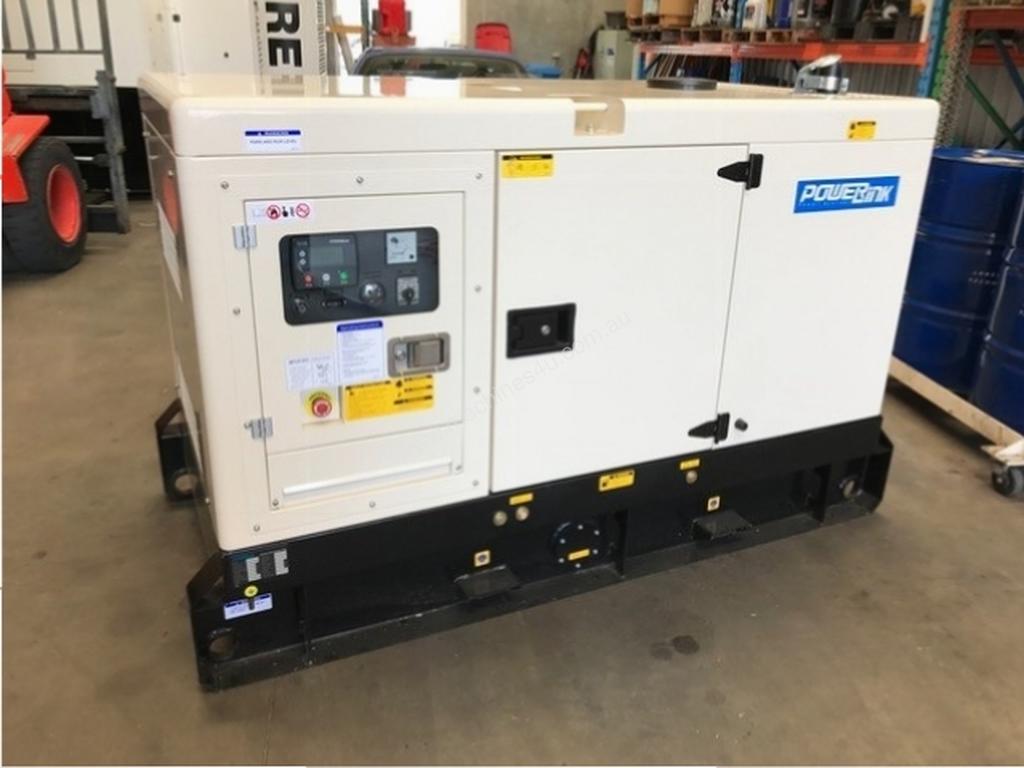

Acoustic canopy:
Powerlink canopies incorporate the following standard features; please see the attached canopy specification sheet for further information:
• Acoustic sound attenuated canopy
• Lube oil and coolant drains piped to the exterior of the canopy.

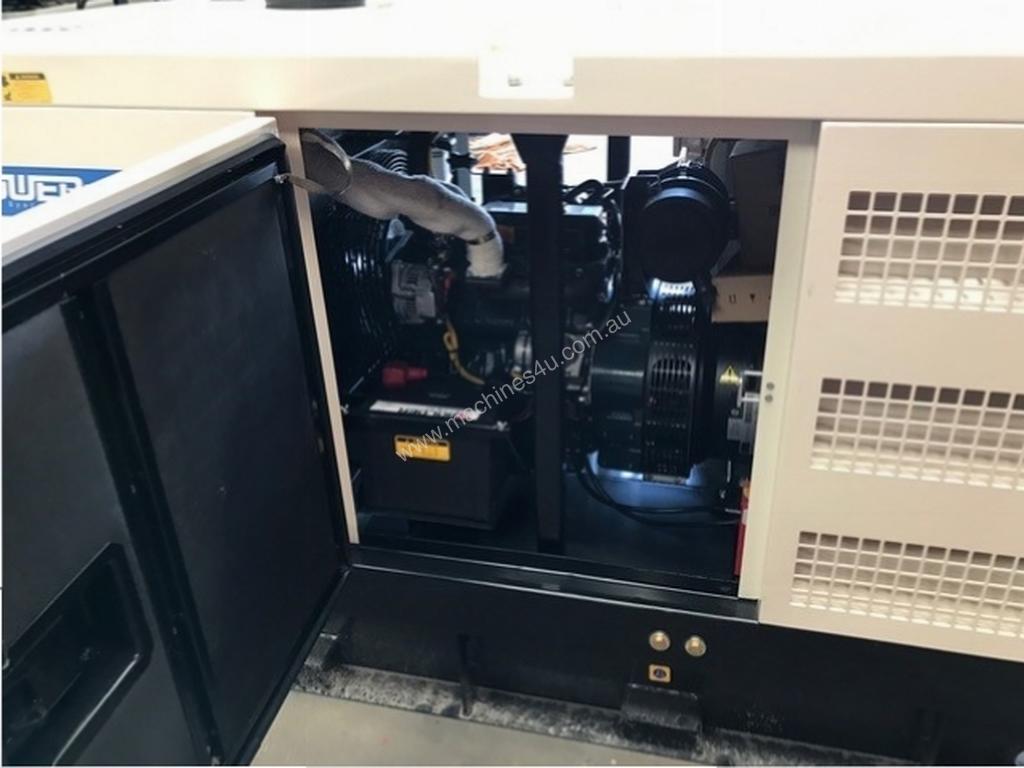

• Service access doors on each side of canopy.
• Control panel viewing window.
• Heavy lift and fork lift provisions.
• Exhaust outlet on top of the canopy.
• Cable entry provisions.
• The canopy constructed from 2mm galvanised sheet metal and painted in polyester powder coating.
• High temperature fire retardant sound insulation.
• “Slap up” hinge and door handles.
• Exterior mounted emergency stop button.
• Lockable door handles for security.
