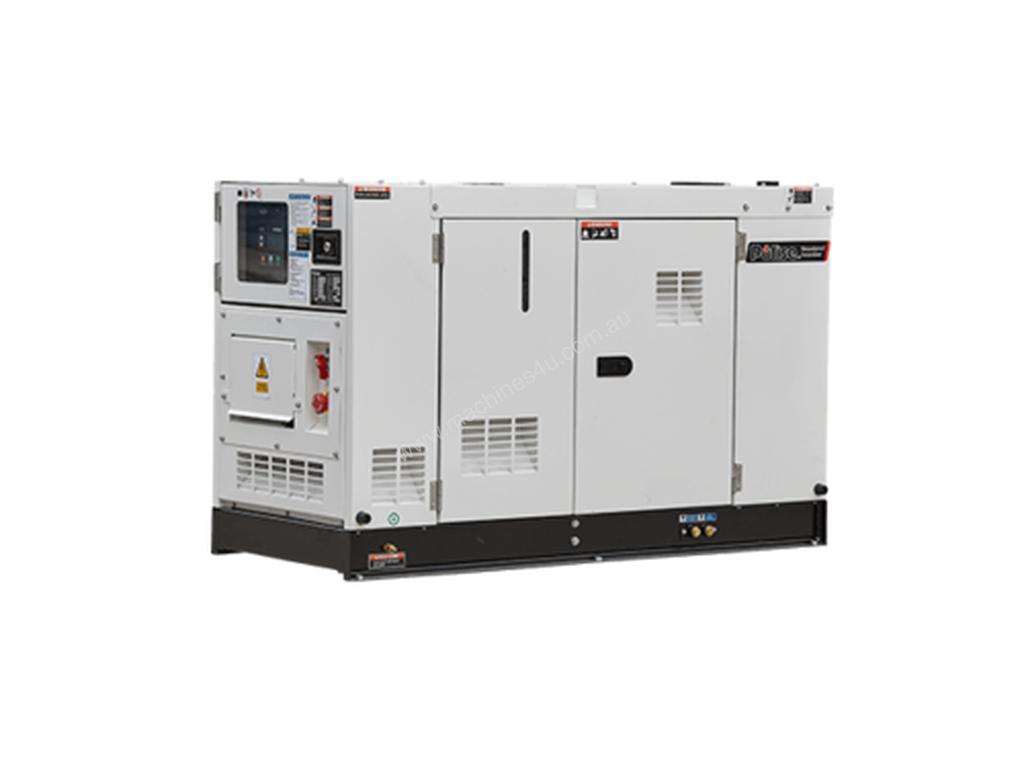

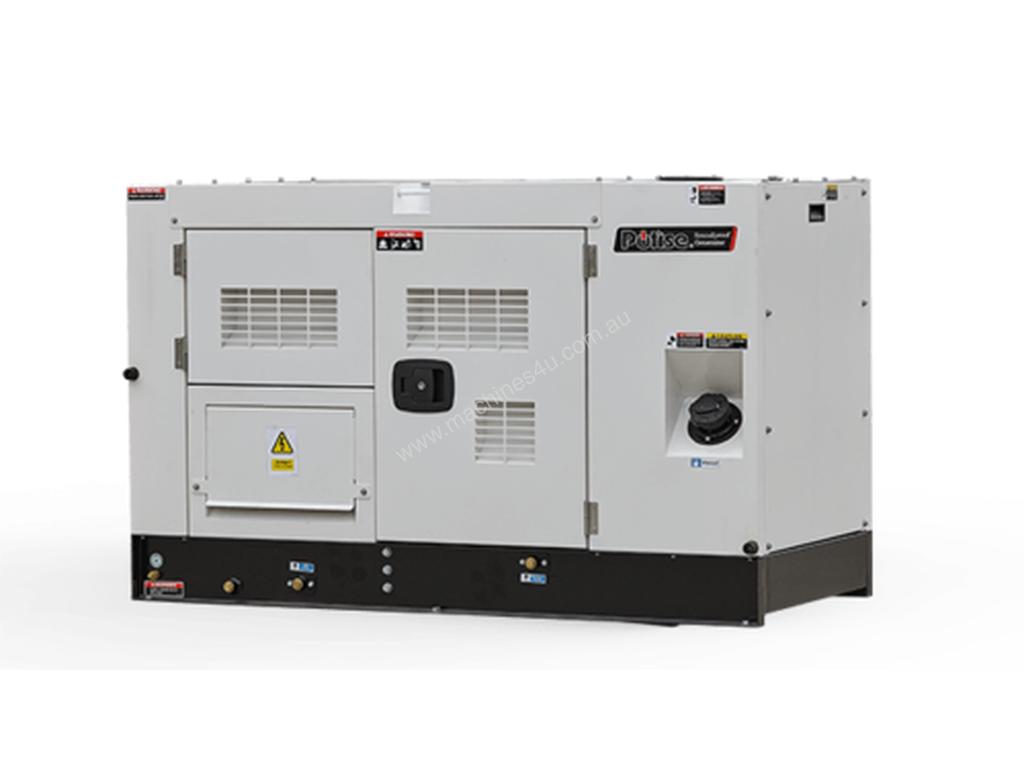

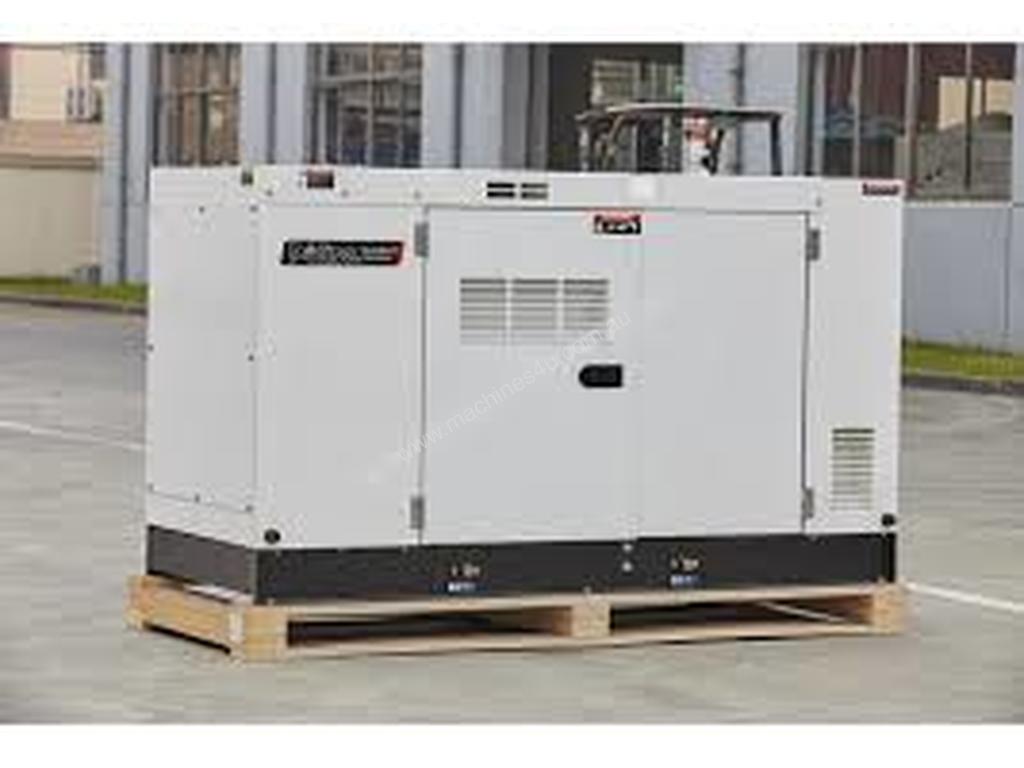

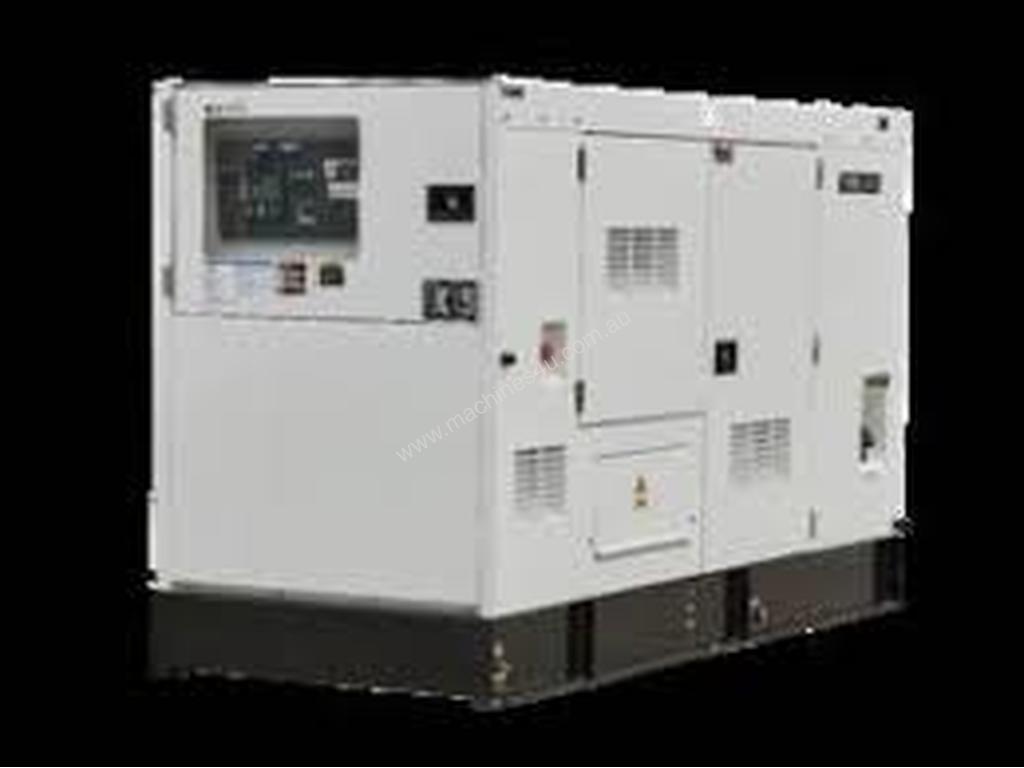

Kubota powered 20KVA Diesel Generator Set

BURNSIDE, QLD - Delivers Nationally

Diesel Generator Set:

IN STOCK

· 20kVA 240/415v 50Hz 27.8Amp’s per phase, Prime Power Rating Generator Set (22kVA Stand-by rating).

· A Kubota, 4 cylinder, 1500rpm industrial diesel engine.

· Set mounted radiator, and pusher engine driven fan.

· Dry type replaceable element engine air intake filter.

· Leroy Somer alternator, single bearing, flange mounted to the engine and driven by flexible steel discs.

· Class “H” insulation.

· Automatic voltage regulator.

· Supply 12Vdc, lead acid starting battery, and leads.

· Supply 12Vdc Starting Battery Charger, mounted inside control cubicle.

· Engine fitted with 12Vdc charging alternator.

· Main output circuit breaker, mounted in control cubicle on generator.

· The generator set controlled via a programmable set mounted Automatic, remote stop / start generator Controller

· Generator set fitted with skid base fuel tank, suitable for 12hrs running at 75% of prime power load.

· Carry out pre delivery and load bank testing before dispatch (delivery available Australia wide).

· Supply 1 copy of operation, and maintenance manuals.

Acoustic canopy:

Tide Power canopies incorporate the following standard features;

· Acoustic sound attenuated canopy to nominally 72Bb 7m

· Lube oil and coolant drains piped to the exterior of the canopy.

· Service access doors on each side of canopy.

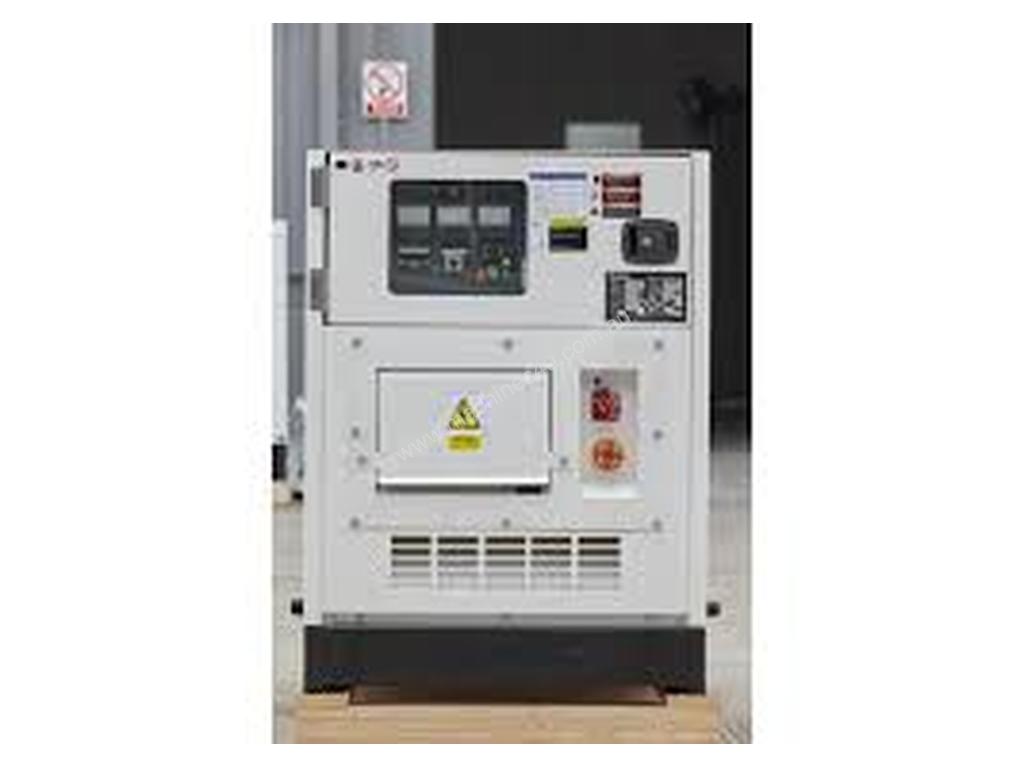

· Control panel viewing window.

· Heavy lift and fork lift provisions.

· Exhaust outlet on top of the canopy.

· Cable entry provisions.

· The canopy constructed from 2mm sheet metal and painted in polyester powder coating.

· High temperature fire retardant sound insulation.

· “Slap up” hinge and door handles.

· Exterior mounted emergency stop button.

· Lockable door handles for security.
